5.5 EDC D-NET - 5.5kW, 60 Hz Diesel Generator

Westerbeke 5.5 EDC D-NET - 5.5KW Marine Generator, 120 Volts, 6.0 HP, 3 Cylinder, 4 Cycle. Operating at 1800 RPM with newly designed, tuned air intake silencer and 3-cylinder engine, the 5.5 EDC generator runs smooth and quiet. MFG#: 5.5 EDC D-NET.

Part number: 5.5 EDC D-NET

Reference: 5.5 EDC D-NET

Westerbeke 5.5 EDC D-NET - 5.5kW Marine Generator.

Westerbeke 5.5 EDC D-NET - 5.5KW Marine Generator, 120 Volts, 6.0 HP, 3 Cylinder, 4 Cycle. Operating at 1800 RPM with newly designed, tuned air intake silencer and 3-cylinder engine

NMEA 2000 Compliant Databus Communication

Westerbeke's D-NET electronic generators are offered with standard Westerlink or optional NMEA 2000 compliant databus communication(first of its kind!). NMEA 2000 generators allow boat builders and their customers to significantly reduce the cost, weight and space normally required to run cables throughout the vessel.

Digital Control Provides You with All The Information You Need

All Westerbeke D-NET generators have digital controls offering simplified and easy to understand information on operational status and, if necessary, system diagnostics.

3-Cylinder Engine Operates at a Quiet 1800 RPM

With its 3-cylinder engine operating at 1800 RPM, the 5.5 EDC generator runs smooth and quiet. Include the optional Sound Guard SST with high quality stainless steel base and frame, and you have a generator that is as attractive as it is quiet.

Standard Features

Digital display and diagnostics panel
Electronic governing
Safety shut-downs: overspeed, underspeed, low oil pressure, high exhaust and high coolant temperature
A.C. circuit breaker
50 amp battery charging alternator
Power take-off interface
Self-bleeding fuel system
Fresh water cooling and coolant recovery tank
45 degree water injected exhaust elbow
Gear driven raw water pump
Tuned air intake silencer
Anti-vibration mounts - fail safe rubber type
Lube oil drain hose and drip tray
Oil fill - top and side
Belt guard
Operator's manual and parts list
5-year limited warranty
Complies with US EPA regulations

Specifications

Cylinders: 3
Bore: 2.99 in.
Stroke: 2.76 in.
Displacement: 58.09 cu. in.
Aspiration: Natural
Length: 27.80 in.
Width: 18.50 in.
Height: 20.60 in.
Weight: 373.00 lbs.

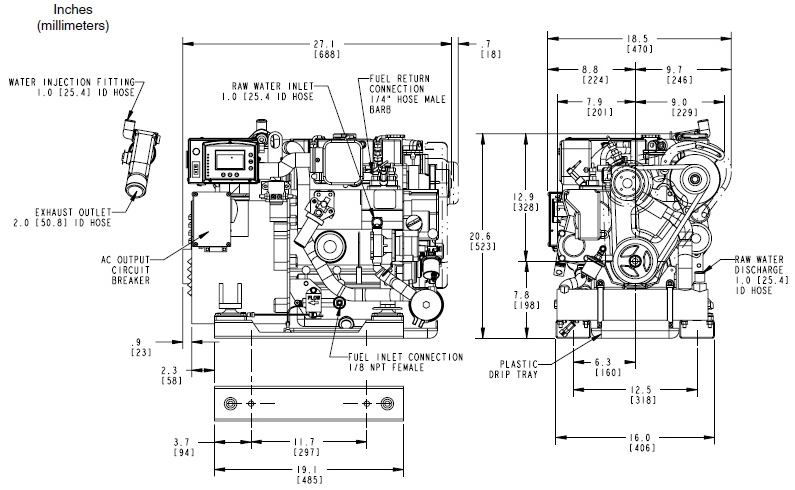

Basic Dimensions

 5.5 edc d-net marine generator
